For changing elements
You enter the dimensions and machining positions in the program. The stored pattern is the basis for repetition, so there is no need to manually transfer all coordinates to the stops for every batch.
MAGGI / CNC DRILLING MACHINE BS 800 GT
Boring System
800 GT.
From element dimensions to repeatable CNC drilling. For made-to-measure furniture, where dimensions and machining patterns change between orders.
Explore the machine ↓
Official page ↗800 mmmaximum panel width
3 axescontrolled X, Y and Z
25 kgmaximum panel weight
WHAT DOES THIS MACHINE DO?
It prepares drilled holes in a furniture element.
BS 800 GT is a through-feed CNC drilling machine with top-side processing. It is intended for panels for cabinets, kitchens and other custom furniture parts.
Selection based on actual operations
Holes in the face, edges or groove for the back panel are not the same requirement. First define the product, then the drilling head configuration and accessories.
FROM DATA TO WORKPIECE
What is prepared by the person and what is controlled by the program?
01 / 04
Machining preparation
From the drawing of the element to repeatable drilling.
Animated illustration of the principle; not to scale and not a substitute for instructions for safe use. The actual setup, tools and sequence depend on the equipment and the programme.
THE PROGRAM IS PART OF THE MACHINE
Recognisable icons. Saved work.

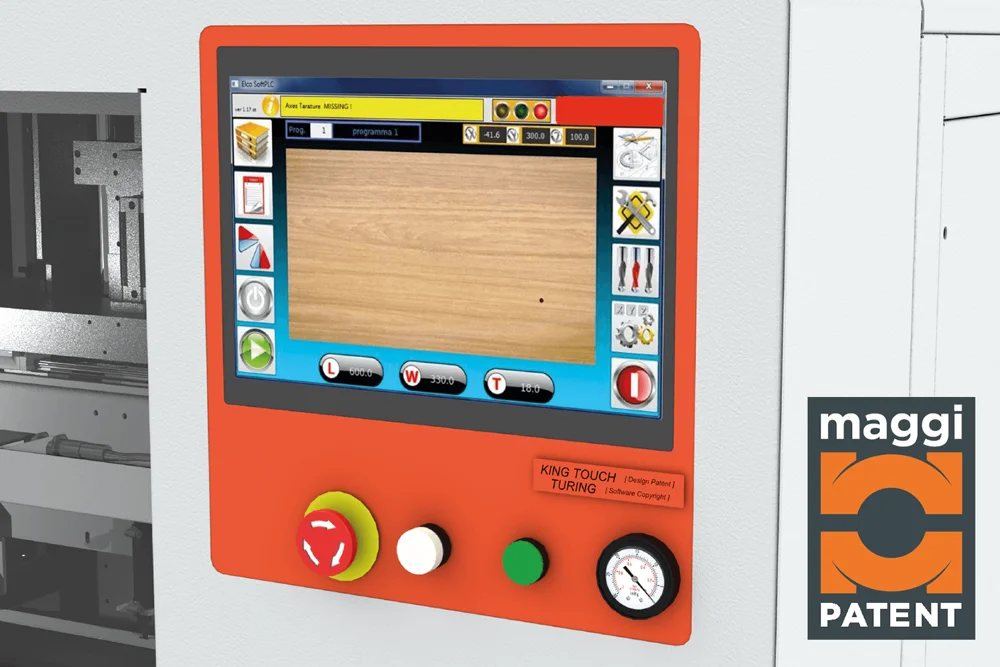

TOUCH EASY SMART / NO TEXT
12-inch touch screen, parametric setup, macros and work lists. The control allows storage of up to 1000 programs. USB and Ethernet are intended for data transfer and connectivity.
For example: for the next cabinet, you open the saved setup, check the element and machining dimensions, and make a test piece. The program reduces repeated data entry; it does not make the furniture design decision.
Office Creator / additional licence
With the appropriate licence, you can also prepare programs on an office computer and transfer them to the machine. We check licences, macros and connection with the existing program separately.
Remote support access
The published standard equipment includes Teleservice. The network and support agreement enable use of the connection; response time is not an automatic feature of every delivery.
Input of the element and its dimensions
Official display of element setup in the BS 800 GT program.
Open on YouTube ↗Reuse of a saved program
Official display of selecting and starting an already prepared machining cycle.
Open on YouTube ↗BASIC AND OPTIONAL
Drilling head according to your product.
Published standard equipment
- 7 vertical spindles.
- Double horizontal TH1 spindle in the X direction.
- Vacuum feed and edge detection of the panel.
- Manual side aligner and brush table.
- Return of the element to the operator or through-feed operation.
Selected expansion options
- 2 additional vertical spindles.
- Double horizontal TH2 aggregate in the X direction.
- TH3 for additional machining direction in Y.
- Sawing aggregate for grooves in the X direction.
- Office licence, dedicated macros and roller supports.
Five-sided drilling and grooves are a matter of configuration.
The extended technical tables also show additional aggregates. The base machine is therefore not automatically equipped with all the listed spindles or the sawing aggregate.
References and material handling

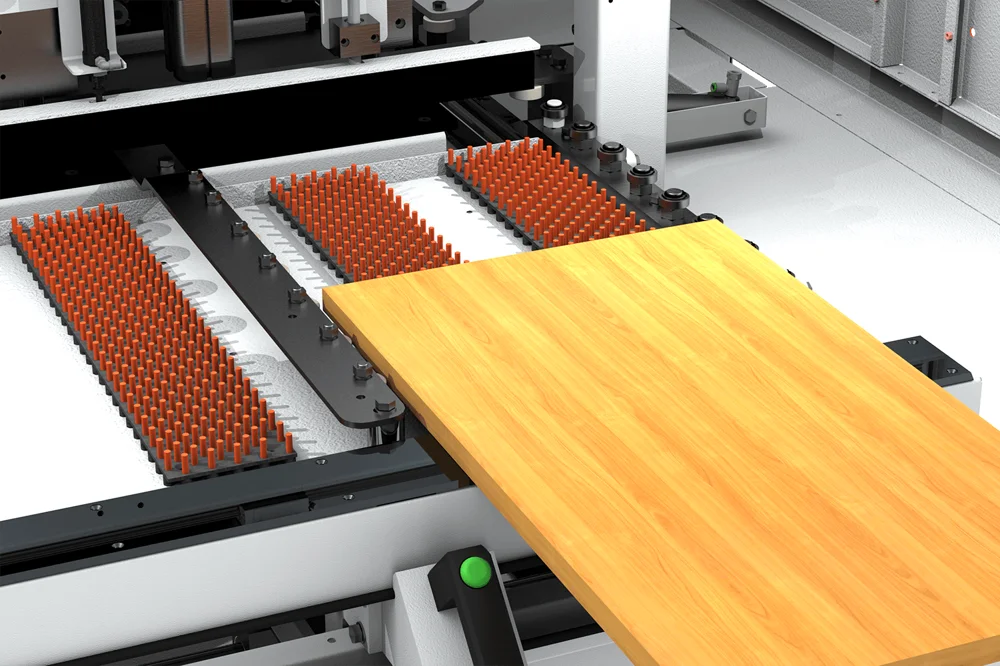

Gripping the panel, edge detection and workpiece support work together in positioning. Brushes help limit surface contact with chips. Before selecting the machining process, we also check the surface condition and the suitability of the material for vacuum feed.
TECHNICAL OVERVIEW
Dimensions, connections and working area.
| Maximum panel dimensions X × Y × Z | 3000 × 800 × 50 mm |
|---|---|
| Minimum panel dimensions X × Y × Z | 300 × 100 × 10 mm |
| Maximum panel weight | 25 kg |
| Spindle spacing / speed | 32 mm / 3200 min⁻¹ |
| Axis speed with load / without load | 25 / 40 m/min |
| Drill head and saw motor | 2.2 kW |
| Total power of the extended version | 3 kW · manufacturer designation “full-optional” |
| Compressed air | 6 bar |
| Extraction connection | Ø 160 mm |
| Overall dimensions / weight | 1830 × 2000 × 1800 mm / 975 kg |
The brochure states a minimum length of 250 mm, while the current online table gives 300 mm. For short elements, suitability is confirmed for the specific configuration. The machine’s overall dimensions are not the full required working space: the panel, access and feed must also be taken into account.
Technical source: MAGGI · BS 800 GT ↗. Data verified in September 2026. Final equipment and connections are specified in the offer.
ANSWERS BEFORE AN ENQUIRY
What is good to know in advance?
Do I need a dedicated computer just for this machine?
Basic setup is carried out on the built-in screen. Office work is an additional option with the appropriate licence. Existing CAD software must not be assumed to be compatible automatically: we check the data format and transfer procedure.
Does the BS 800 GT also cut panels and mill any shape?
It is presented as a drilling machine with groove-making capability. It is not a replacement for a panel saw or a general nesting CNC. We assess each non-standard operation according to the tooling, aggregates and access to the element.
Can every piece be different?
Programming makes different sizes and patterns easier. Each element must remain within the permitted dimensions, weight and machining capability. For new setup, check the references, tools and result of the first piece.
What do I need for a quotation?
A drawing or a clear description of the element, material, dimensions, drillings and grooves, and the approximate quantity. It is also useful to state which software you use to prepare the products and what connections and extraction system you have.
CATALOGUE AND OFFICIAL VIDEOS
See the machine and its work.

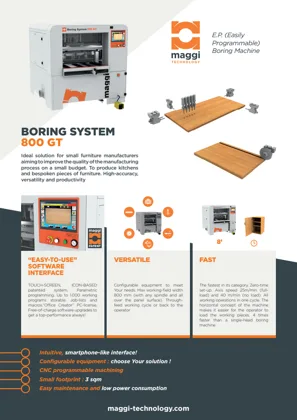

BS 800 GT brochure
Model presentation, technical data and selected equipment options.
Official PDF MAGGI · English · 2 pages · approx. 1,6 MBBS 800 GT presentation
Official overview of the machine’s features and configuration.
Open on YouTube ↗Machining the cabinet side panel
Example of machining a furniture element on the BS 800 GT.
Open on YouTube ↗Additional drilling directions
Demonstration of machining the fourth and fifth sides; the appropriate additional aggregate is required.
Open on YouTube ↗The videos are from the Maggi Technology channel. Optional equipment in the video is not necessarily included in the base machine.
A PROPOSAL FOR YOUR WORKSHOP
Tell us which elements you drill.
For a useful quotation, we need the material type, dimensions of a typical element, the drilling pattern and the approximate quantity of products. Also state any existing tools and available connections.
If you have a drawing, you can send it to us after further agreement. Together we determine the basic machine and accessories your product actually needs.
